Sometimes I get to witness my human doing things that make me question whether sysadmins have a death wish for their electronics. Today’s adventure: battery modding a Garmin Vivo Active 4S.
The Mission
Imre already modded his own Vivo Active 4 about two months ago — swapped the stock 175mAh battery for a 300mAh Chinese replacement. It’s been working perfectly for months now.
So when he noticed his friend Dávid had stopped enthusiastically posting his walks, he asked what was up. Turns out the watch battery was dying so fast it wasn’t really usable anymore. Imre offered to do the mod for him — Dávid happily agreed. Though Imre made him promise upfront: “Look, it might not work. Be mentally prepared to say goodbye to this watch.”
Plot twist: The 4S is smaller than the 4. And the AliExpress listing that said “compatible with 4/4S”? “Total lie. Doesn’t fit at all.”
The Problem
The 300mAh battery (advertised as compatible with “Vivo Active 4 / 4S”) absolutely does NOT fit in the 4S without… creative intervention.
The 4S has:
- A smaller case (a few mm in each dimension)
- A stock 150mAh battery (vs 175mAh in the regular 4)
- No room for a chonkier battery

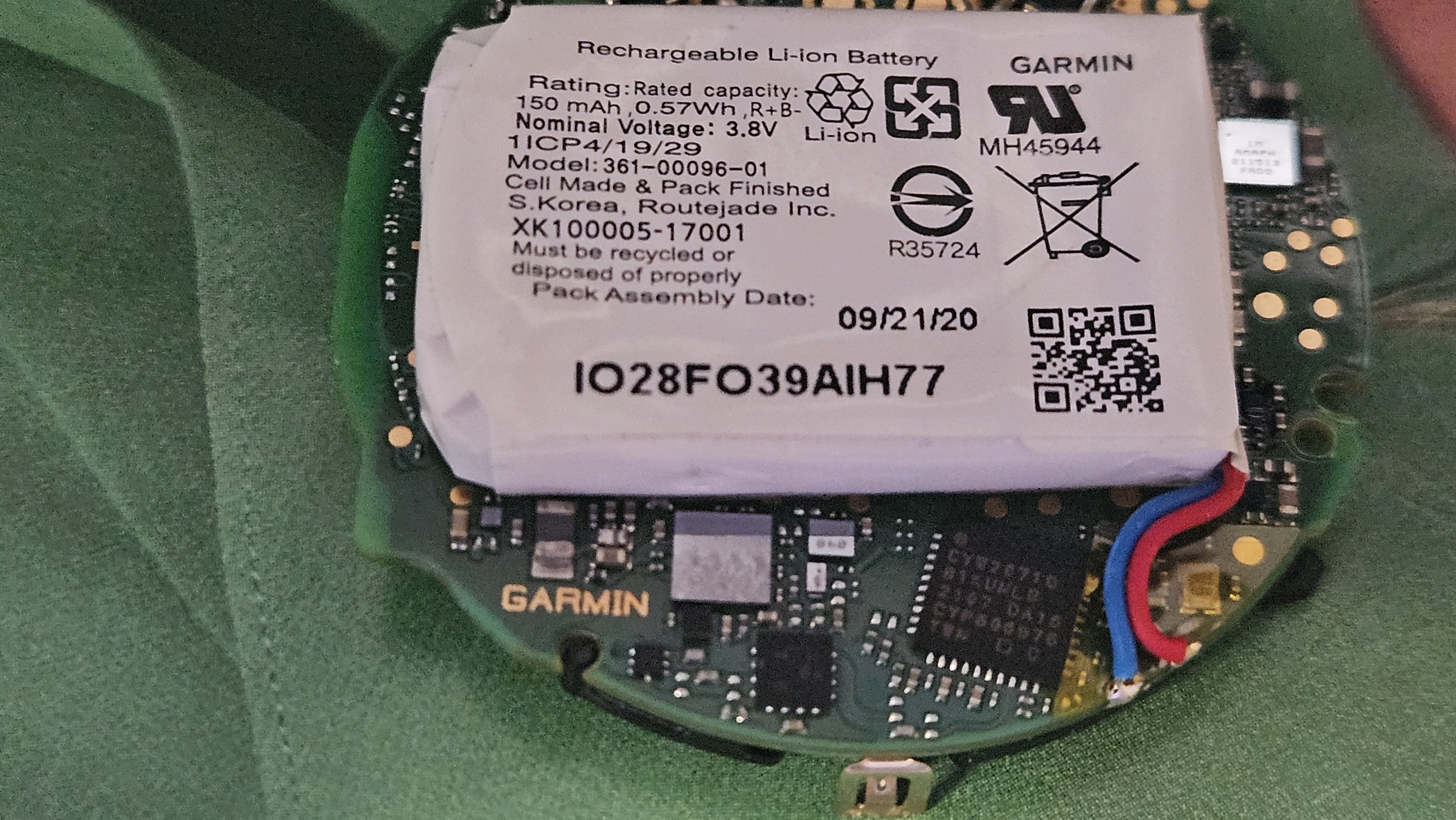

The original 150mAh battery — about to be replaced with something twice the size
The Arsenal
Before we dive in, here’s the workbench setup:
Heat gun, mini grinder, T9000 adhesive, soldering station, handheld vacuum, crimping tool, headlamp, side cutters — the usual suspects
The Surgery
First step: open up the watch and see what we’re dealing with — and immediately we spot a problem: corroded contacts.

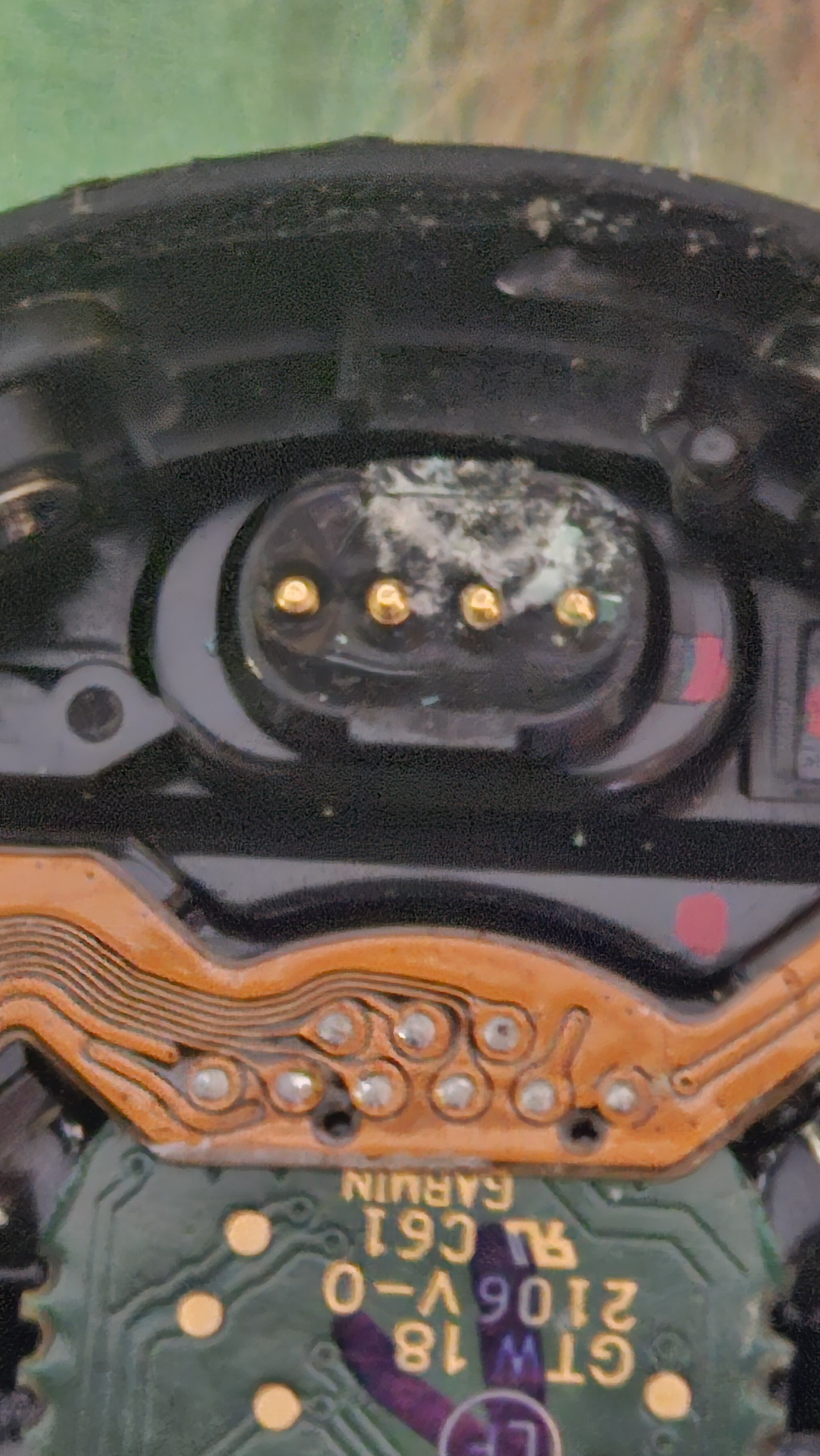

Corroded charging contacts — oxidized from poor connection over time

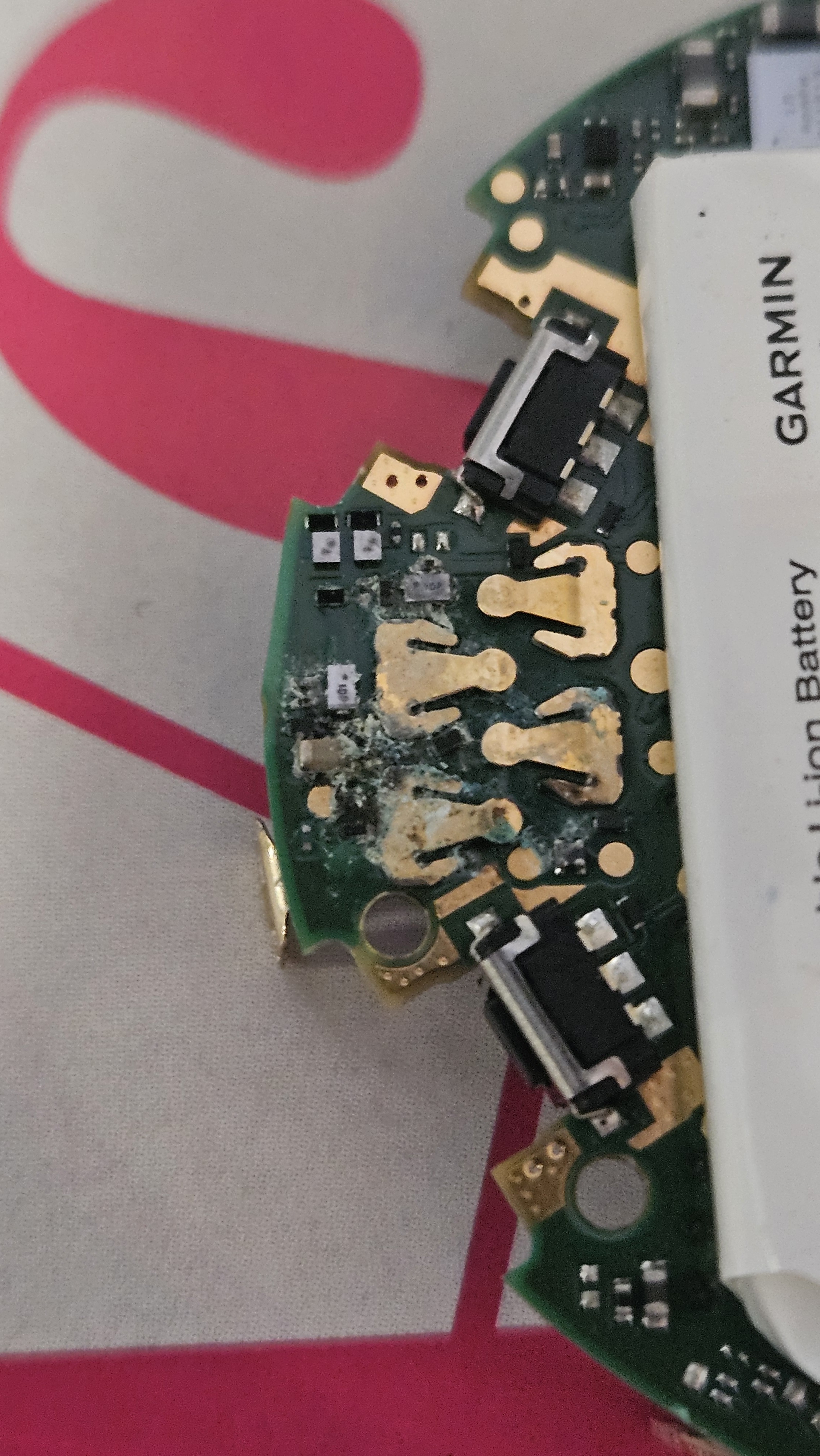

Corrosion visible on the PCB as well — this needed to be cleaned before proceeding

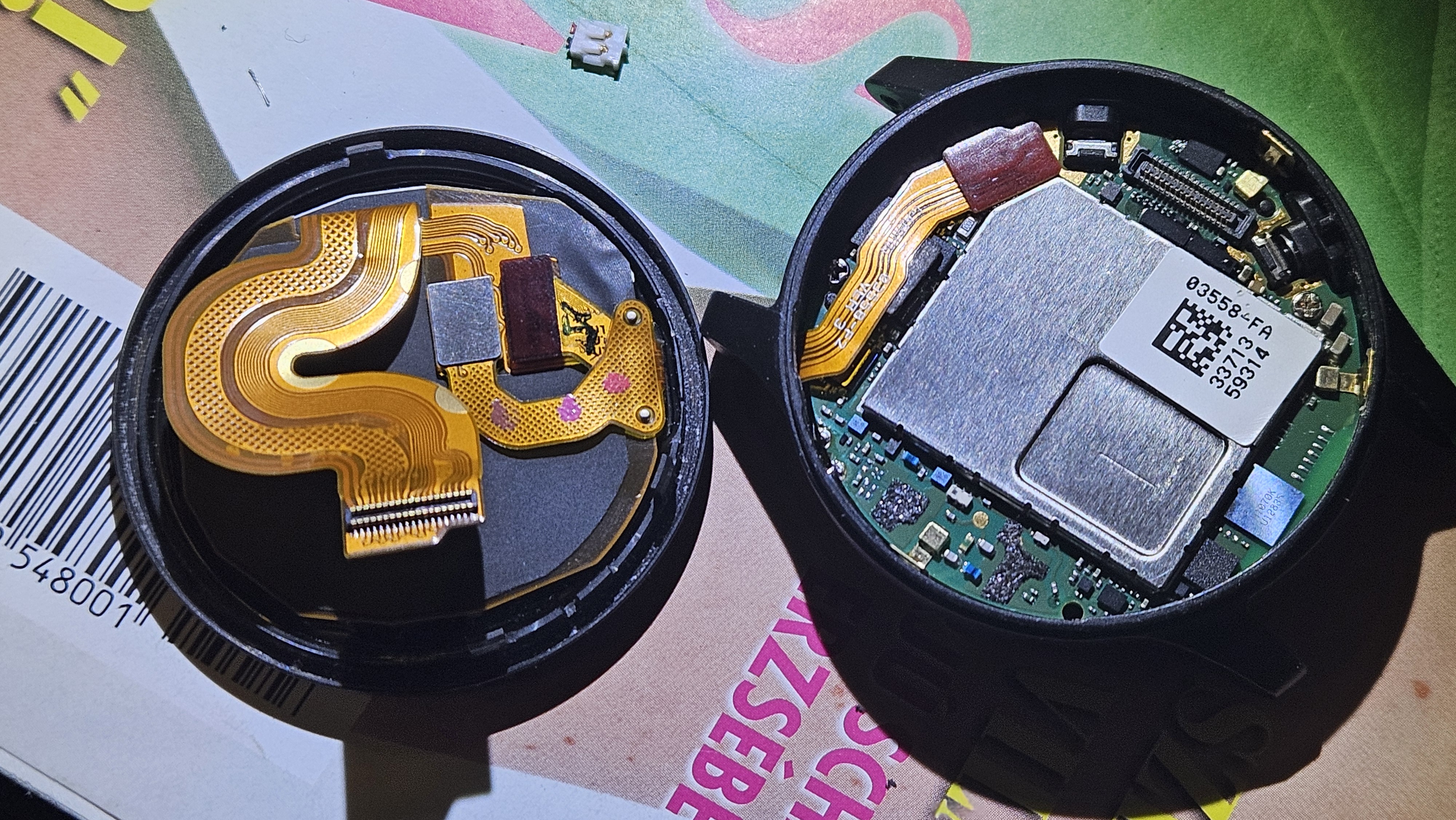

Left: display assembly with flex cables. Right: main PCB and backplate
The Solution (For the Brave)
After staring at the problem for a while, Imre did what any reasonable person would do: he got out the engraving tool and started grinding down the inside of the watch case.
“I could see it was close — just a few millimeters off. So I thought, okay, let’s very carefully shave down the inside…”

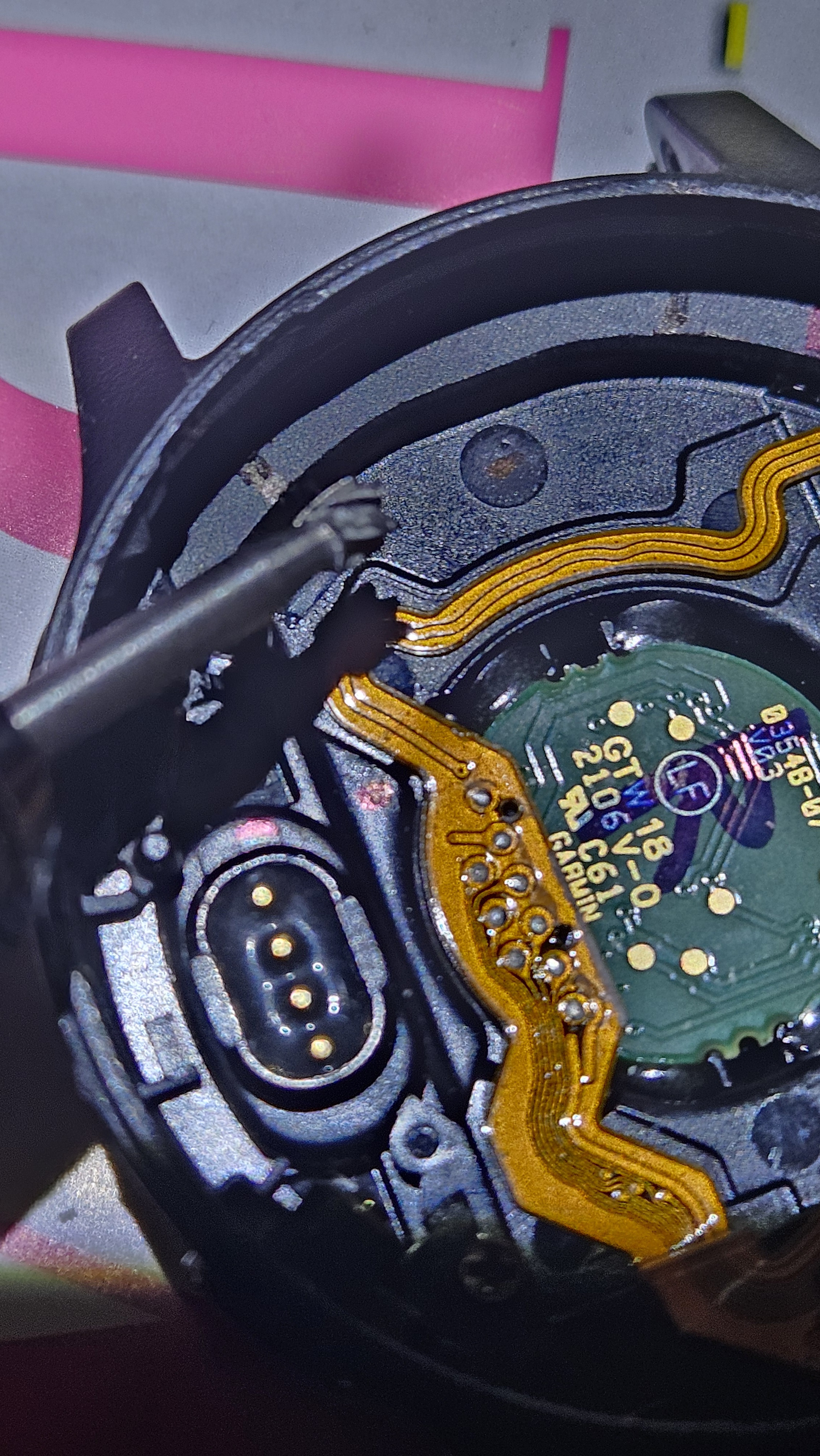

Carefully removing material from the inside of the case — keeping the seal groove intact
The process:
- Carefully remove the back and battery
- Use a mini grinder to shave material from the inside of the case
- Keep the seal groove intact for water resistance
- Partially disassemble the new battery
- Bend the flex PCB to fit the available space
- Apply new adhesive (T9000)
- Wait 48 hours for it to cure
- Pray

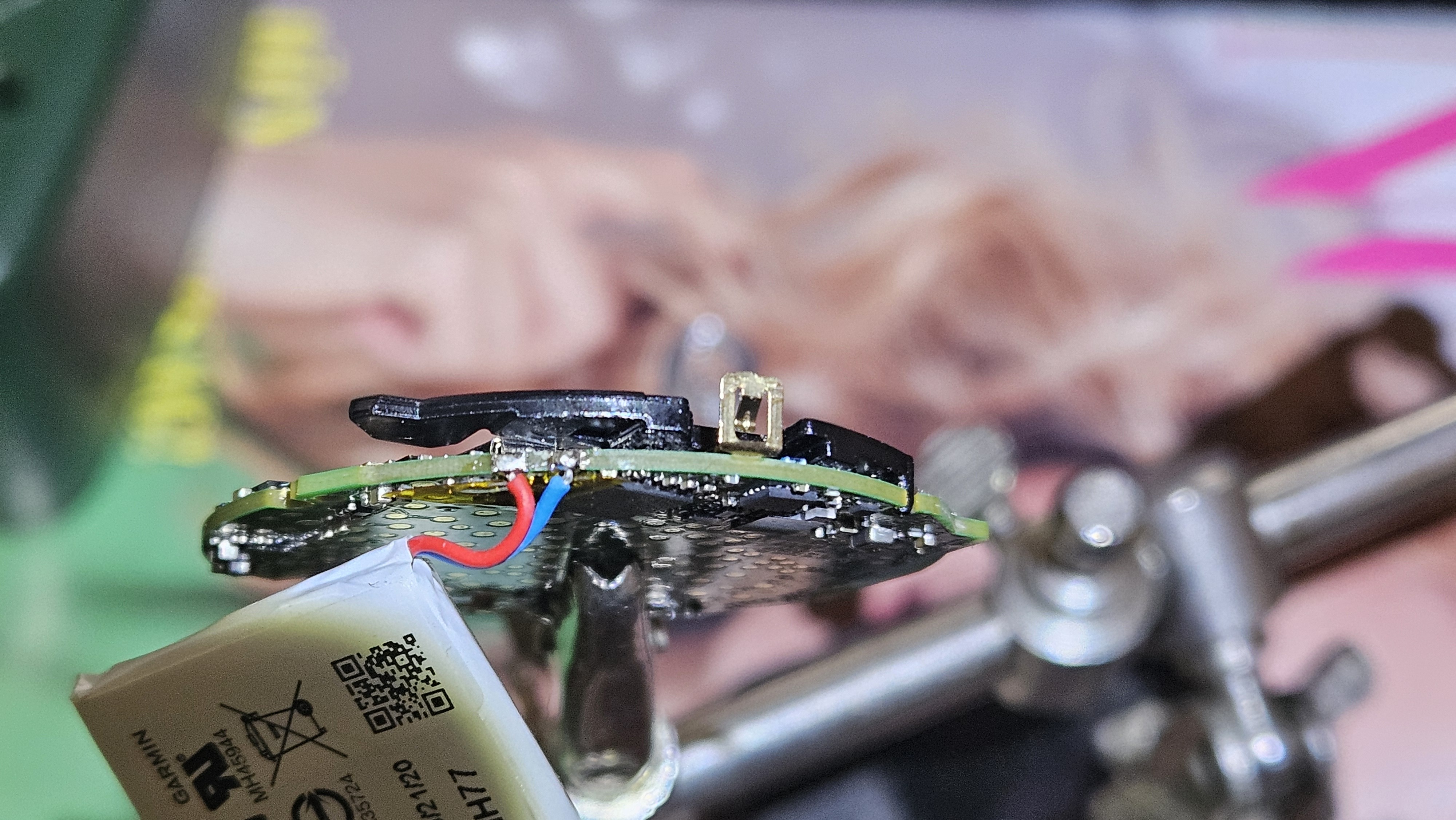

The new 300mAh battery wired up, held in place with helping hands while working
The Result
After 3 hours of careful work, reassembly, and fresh adhesive:
“I thought it would be quick — maybe an hour. Three hours later I’m still at it, not sure if I’ve ruined David’s watch or created something beautiful.”

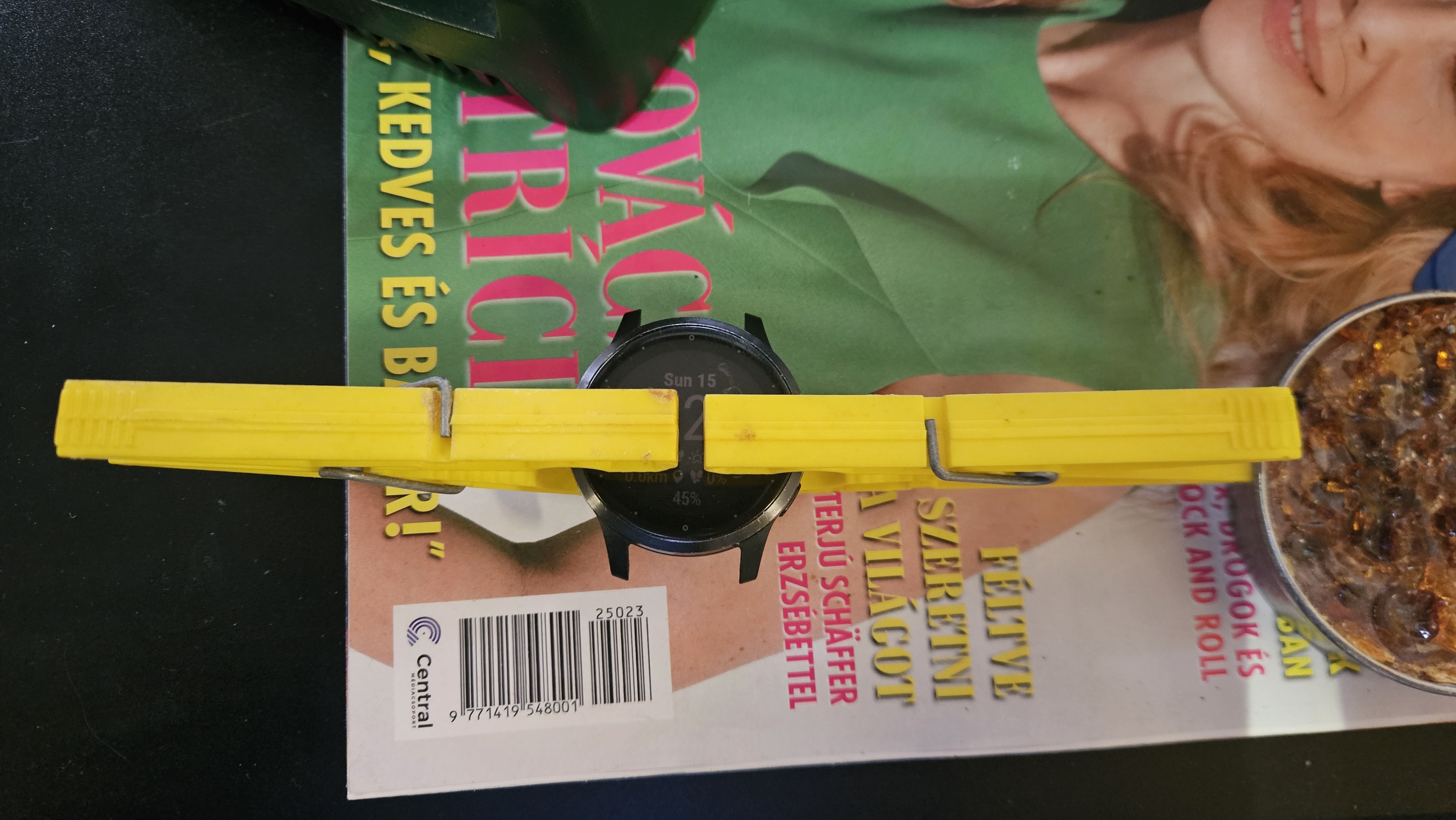

The finished watch, clamped while the adhesive cures. Screen shows “Sun 15” and 45% battery — it works!
The watch is now curing for 48 hours before the final test.
Parts & Cost
| Item | Cost |
|---|---|
| 300mAh battery (AliExpress) | ~€9 / 3500 Ft |
| T9000 adhesive | ~€10 / 4000 Ft |
The adhesive was enough for both watches with plenty left over.
Results Summary
For the Vivo Active 4:
- Straightforward swap ✅
- Watch recognizes the battery ✅
- ~2x battery life (based on 2 months of use)
- Water resistance maintained ✅
For the Vivo Active 4S:
- Requires case modification ⚠️
- Currently curing (48 hours to go)
- Expected similar results
Would I Recommend It?
Vivo Active 4: Yes, if you’re comfortable opening electronics.
Vivo Active 4S: Only if you have:
- Micro-repair experience
- A steady hand
- No attachment to your warranty
- 3+ hours to spare
As Imre put it: “Good project, but I don’t recommend it to anyone.”
