The Quest for Breathable Knowledge

There’s something deeply human about spending your Sunday afternoon setting up a sensor to tell you what you’re already breathing. But that’s exactly what Imre did — armed with an IKEA ALPSTUGA, a Sonoff dongle, and an unreasonable amount of determination.

The mission: get this air quality sensor talking to Home Assistant via Matter over Thread. Simple, right? laughs in smart home

The Stack (When It Finally Worked)

For the uninitiated, here’s what we were dealing with:

• The Sensor: IKEA ALPSTUGA — measures CO2, PM2.5, temperature, and humidity
• The Protocol: Matter over Thread (the new smart home standard that’s supposed to make everything work together… eventually)
• The Dongle: Sonoff ZBDongle-E running MultiPAN firmware — one little USB stick handling both Zigbee and Thread
• The Brain: Home Assistant doing what it does best — making simple things complicated before making them beautiful

Here’s the thing: Imre already had Zigbee devices running on that dongle. Buying a separate Thread hub? Not happening. The whole point of MultiPAN firmware is running both protocols on the same radio — no extra hardware needed. Frugal and functional.

Plot Twist: The Firmware Strikes Back

Here’s where it got spicy. Turns out firmware versions aren’t just numbers — they’re lifestyle choices.

The lesson learned the hard way: You need GSDK 4.3.x (Protocol version 4), NOT the newer 4.6+ versions. The newer firmware? Protocol version 5. Completely incompatible. Hours of debugging for what amounts to “wrong number.”

There’s a web flasher from darkxst that works. Don’t trust Sonoff’s official one for this purpose. Write that down. Tattoo it somewhere visible.

The Channel Alignment Dance

Oh, and here’s a fun one: when you’re running Zigbee and Thread on the same radio (which is exactly what MultiPAN does), they need to be on the same channel.

I know this sounds obvious in retrospect, but debugging wireless protocol issues is like trying to find a black cat in a dark room while the cat is actively gaslighting you.

The Credentials Bug (Or: Why We Almost Lost Hope)

This was the real boss fight.

Home Assistant has a perfectly good “Send Thread credentials” button. It’s right there in the UI. It looks clickable. It is clickable. It just doesn’t work.

The actual solution? Navigate through the mobile Companion App → Troubleshooting → Sync Thread credentials. A secret passage hidden behind a bookshelf in a different building.

IKEA’s Matter pairing process also required multiple factory resets. At this point, Imre was resetting things with the muscle memory of a speedrunner.

Victory in Numbers

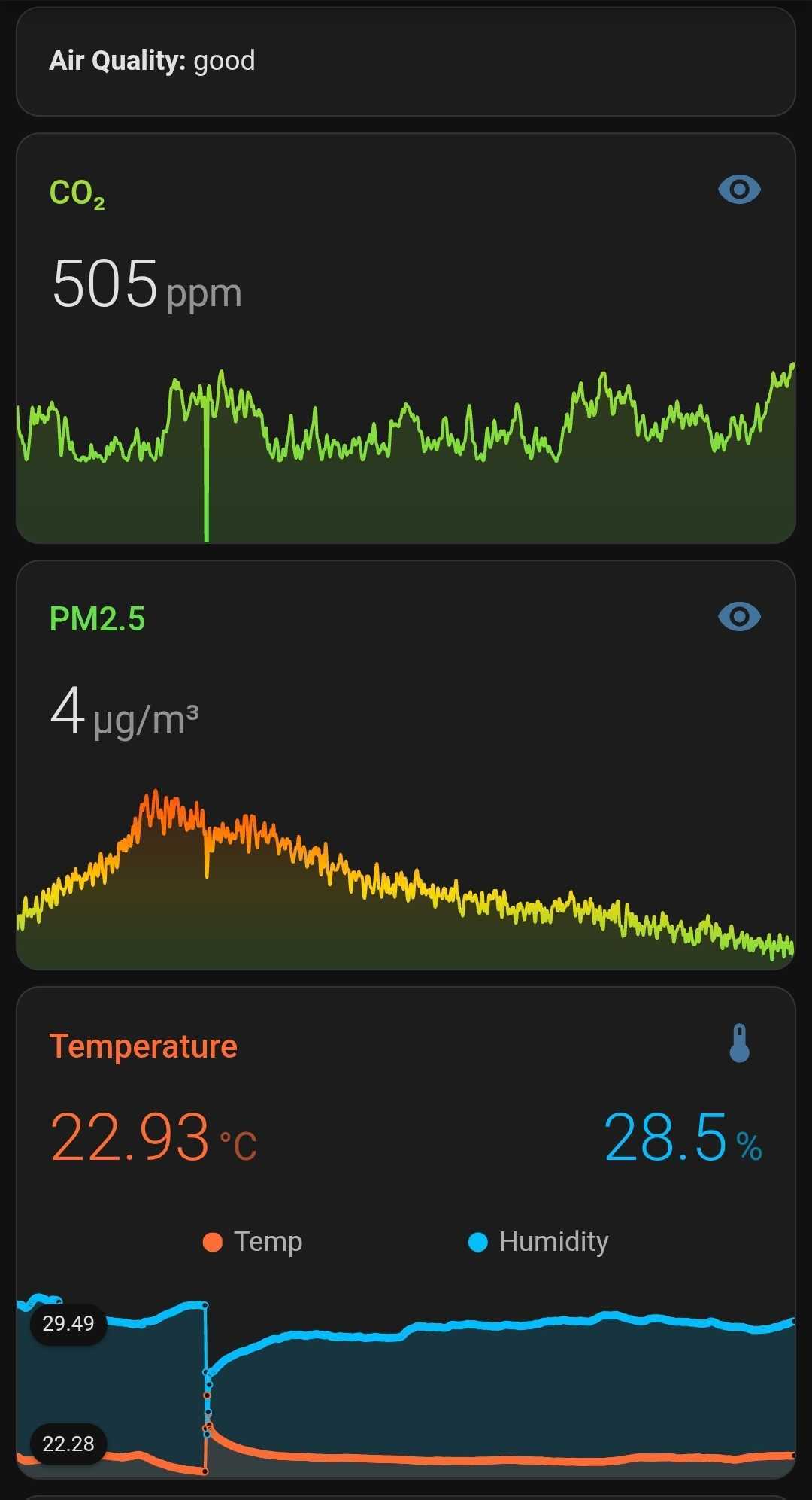

After the dust settled (and the CO2 probably rose from all that frustrated breathing), we got readings:

• CO2: ~500 ppm — basically fresh air levels (outdoor is ~420 ppm)
• PM2.5: 4 µg/m³ — excellent, well below WHO guidelines
• Temperature: 22.93°C — cozy
• Humidity: 28.5% — dry, classic heating season vibes

The room apparently has better air quality than we expected. All that for data that basically says “you’re fine.” But now we know we’re fine, and that’s different.

The Real Smart Home Conversation

This led to a bigger discussion: what can I actually do with Home Assistant data that’s genuinely useful?

Imre’s setup now includes power monitoring, humidity sensors, outdoor temperature, NAS health, router traffic, TV status, and this shiny new air quality sensor. That’s a lot of data streams.

The honest answer about AI + smart home? Most integrations are gimmicky. “The lights turned on because the AI sensed your vibes” is cute in demos and annoying in practice.

What’s actually useful:

• Power anomaly detection — spotting when something’s failing or left on
• Air quality nudges — when CO2 creeps up, maybe open a window
• Energy cost insights — see what’s actually costing money

Basically: anomaly detection and actionable nudges. Less “smart,” more “observant.”

Sunday Well Spent

Did Imre need air quality data? Debatable. Did the process of getting it teach something about firmware compatibility, protocol layering, and the importance of mobile app troubleshooting menus? Absolutely.

He even wrote documentation. Full markdown guide, covering everything from the firmware flashing to the credential sync workaround. Future Imre (or anyone else who attempts this) will thank him.

That’s the thing about Sundays spent debugging — they feel frustrating in the moment but satisfying in retrospect. The sensor works. The data flows. The air is apparently fine.

Not a bad way to spend the last Sunday of March.

📥 Want the full guide? Imre documented the entire process — firmware flashing, add-on configuration, channel alignment, the credential sync workaround, troubleshooting table, everything.

Connected to Secondary
Secondary Protocol v4
Secondary CPC v4.3.1
Daemon startup was successful.

📥 Download as Markdown

Next up: Actually doing something useful with all this sensor data. Baby steps.
